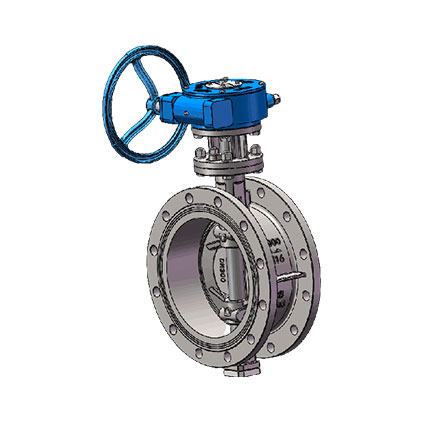

DN50-DN300 Double flange type Metal to Metal Butterfly Valve

Design: BS EN593 or API609

Flange: EN1092-1 /GOST 33259-2015 ASME B16.5/ASME B16.47

Face to Face: EN558-1-Series 13;

Materials: WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L

Send Email

Chat Now

Share With:

Briefs

Standards

Optional

Remarks

parameter(Dimension: mm)

Briefs

Triple eccentric design;

Bidirectional type zero leakage

Size rage from DN 50—DN 300mm

Pressure rating: PN10 – PN25 from DN50-DN 300mm PN40 for DN 200-DN 1200mm

Applications: water, hot water, oil and gas etc.

Standards

Design:

BS EN593 or API609

Flange:

EN1092-1 /GOST 33259-2015 ASME B16.5/ASME B16.47

Face to Face:

EN558-1-Series 13;

Materials:

WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L

Optional

Electric /pneumatic actuator/ bare shaft / gearbox +ready flange

Remarks

Design and manufacture as per BS EN593

Face to face dimensions as per BS EN558 Series 13

Flange dimensions as per Gost 33259-2015

Pressure test as per BS EN12266-1

Pressure test		PN10	PN16	PN25
Shell		15bar	24bar	37.5bar
Seal	Water	11 bar	17.6bar	27.5bar
Seal	Air	6bar	6bar	6bar

Media: Water, oil and gas Temperature: -15~350℃ Dimension: mm

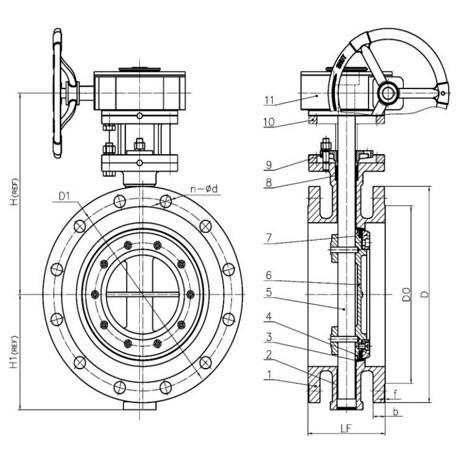

Material for main parts

No.	Part Name	Material	No.	Part Name	Material
1	Body	WCB	7	Retainer	Q235
2	Bushing	Selflubricating	8	Packing	Graphite
3	Body seat	SS304	9	Gland	WCB
4	Disc seat	SS304+ XB450	10	Yoke	WCB
5	Stem	2Cr13	11	Gear box	Ductile iron
6	Disc	WCB

parameter(Dimension: mm)

DN	PN	LF	D	DO	D1	n-Ød		f	b	H#	H1 #
50	10	108	165	102	125	4-018		3	18	213	92
	16
	25
65	10	112	185	122	145	4-018		3	18	225	101
	16
	25					8-018			22
80	10	114	200	132	160	8-018		3	20	230	110
	16
	25								22
100	10	127	220	156	180	8-018		3	20	242	120
	16
	25		235		190	8-022			24	247	128
125	10	140	250	184	210	8-018		3	22	276	137
	16
	25		270		220	8-026			26	281	152
150	10	140	285	210	240	8-022		3	24	296	155
	16
	25		300		250	8-026			28	305	167
200	10	152	340	266	295	8-022		3	24	364	185
	16					12-022
	25		360	274	310	12-026			30	364	210
250	10	165	395	316	350	12-022		3	26	395	218
	16		405		355	12-026
	25		425	330	370	12-030			32	405	245
300	10	178	445	370	400	12-022		4	26	430	247
	16		460	370	410	12-026			28
	25		485	389	430	16-030	4-M27 *		34	438	291

The "n" of "n-Ød" is the total number of holes, 4-M27 means that the 4 holes at stem upper and lower position are threaded
holes.
"H" and "H1" for reference only.
