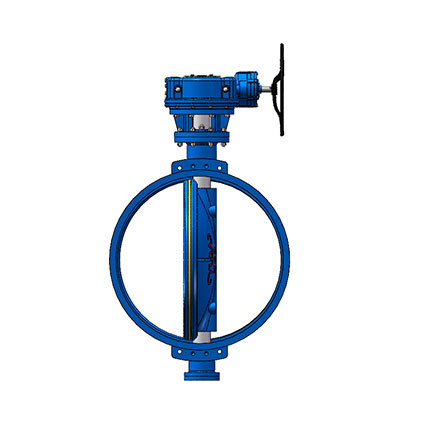

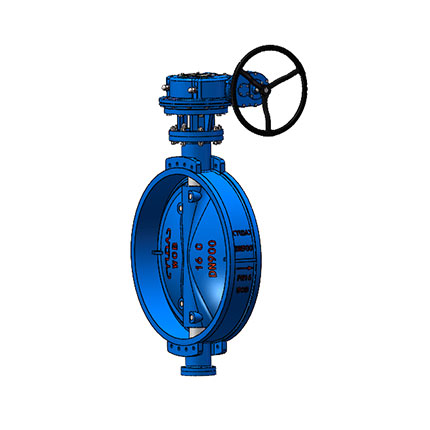

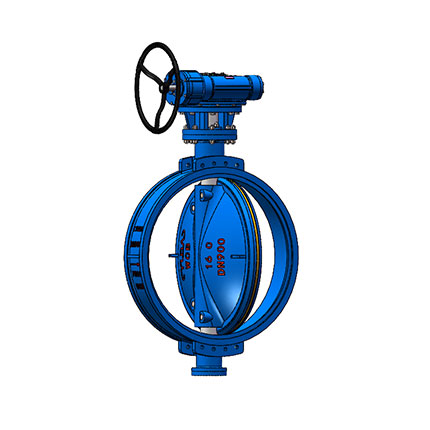

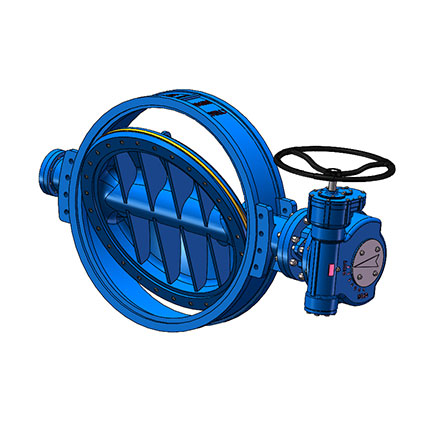

Wafer type butterfly valve

Design: API609, ASME B 16.34, BS EN593

Flange: ASME B 16.5, ASME B 16.47, BS EN1092

Face to Face: API 609, , BS EN 593 S13 S14 , and ISO5752

Materials: Body :WCB/CF8/CF8M/904L

Send Email

Chat Now

Download

Share With:

Description

Standards

Remarks

parameter(Dimension: mm)

Description

Size	DN100—DN1600mm 4inch—64inch
Pressure Limits	PN10/PN16/PN25/150LB/300LB
Standard	Designed: API609, ASME B 16.34, BS EN593 Face to Face: API 609, , BS EN 593 S20 S25 Flange End: GOST 33259 1092-1 Inspection Test: API 598, BS EN 12266
Body Style	Wafer & Lug
Materials	Body: WCB/CF8/CF8M/904L Disc : WCB/CF8/CF8M/904L Stem :SS410 /SS420/SS304/SS316/904L/ Duplex SS Seat Materials:304/316/Graphite/Asbestos/PTFE
Features and benefits	Metal to metal sealing or rubber sealing Triple eccentric design Bi-directional Zero leakage
APPLICATIONS	Water/sea water Acid /Caustic /Chloride Oil and so on
Temperature Limits	From -59 up to 425
Drive	Manual/Worm gear/Electric/Pneumatic

Standards

Design:

API609, ASME B 16.34, BS EN593

Flange:

ASME B 16.5, ASME B 16.47, BS EN1092

Face to Face:

API 609, , BS EN 593 S13 S14 , and ISO5752

Materials:

Body :WCB/CF8/CF8M/904L
Disc : WCB/CF8/CF8M/904L
Stem :SS410 /SS420/SS304/SS316/904L/ Duplex SS
Seat Materials:304/316/Graphite/Asbestos/PTFE

Remarks

Design and manufacture as per BS EN593

Face to face dimensions as per BS EN558 Series 25

Flange dimensions as per Gost 33259-2015

Pressure test as per BS EN12266-1

Pressure test		PN10	PN16	PN25
Shell		15bar	24bar	37.5bar
Seal	Water	11bar	17.6bar	27.5bar
Seal	Air	6bar	6bar	6bar

Media: Water, oil and gas Temperature: -15~350℃ Dimension: mm

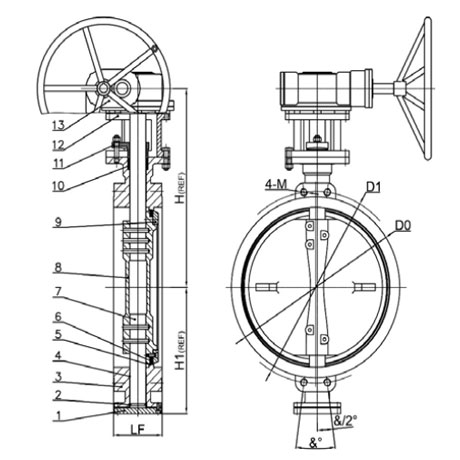

Material for main parts

No.	Part Name	Material	No.	Part Name	Material
1	Cover	Q235	8	Disc	WCB
2	Thrust ring	20#	9	Retainer	Q235
3	Body	WCB	10	Packing	Graphite
4	Bushing	Self-lubricating	11	Gland	WCB
5	Body seat	SS304	12	Yoke	WCB
6	Disc seat	SS304+XB450	13	Gear box	Ductile iron
7	Stem	2Cr13

parameter(Dimension: mm)

DN	PN	LF	D0	D1	4-M	&°	(Number of holes)	H #	H1 #
250	10	76	322	350	4-M20	30°	12	405	248
	16			355	4-M24
	25			370	4-M27
300	10	83	368	400	4-M20	30°	12	440	289
	16			410	4-M24
	25			430	4-M27	22.5°	16
350	10	92	427	460	4-M20	22.5°	16	490	333
	16			470	4-M24
	25			490	4-M30
400	10	102	480	515	4-M24	22.5°	16	512	364
	16			525	4-M27
	25			550	4-M33
450	10	114	533	565	4-M24	18°	20	573	380
	16			585	4-M27
	25			600	4-M33			585
500	10	127	582	620	4-M24	18°	20	602	425
	16			650	4-M30
	25			660	4-M33
600	10	154	680	725	4-M27	18°	20	730	485
	16		720	770	4-M33			700	450
	25				4-M36
700	10	165	800	840	4-M27	15°	24	740	525
	16				4-M33
800	10	190	902	950	4-M30	15°	24	835	585
	16				4-M36
900	10	200	1010	1050	4-M30	12.857°	28	881	650
	16				4-M36			916
1000	10	216	1120	1160	4-M33	12.857°	28	970	695
	16			1170	4-M39
1200	10	254	1311	1380	4-M36	11.25°	32	1107	815
	16			1390	4-M45
1400	10	279	1525	1590	4-M39	10°	36	1255	935
	16				4-M45
1600	10	318	1765	1820	4-M45	9°	40	1344	1010
	16				4-M52

# "H" and "H1" for reference only.
