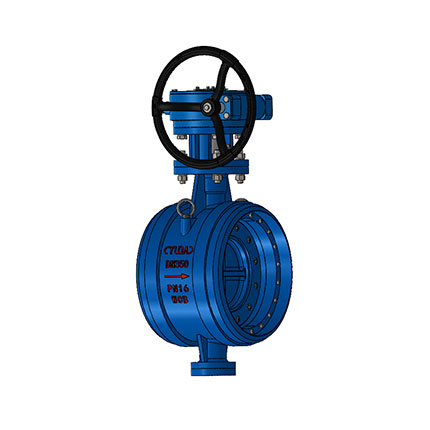

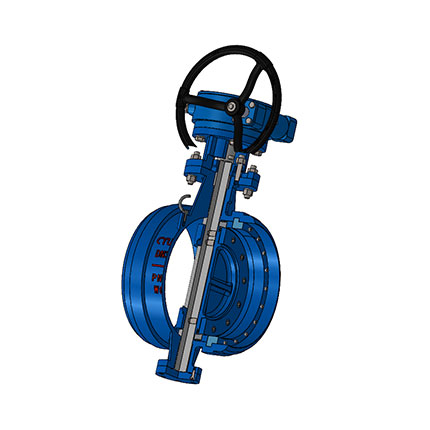

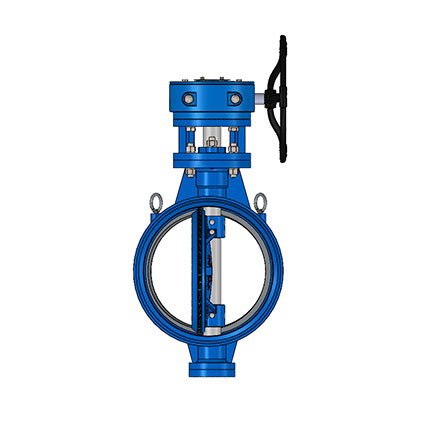

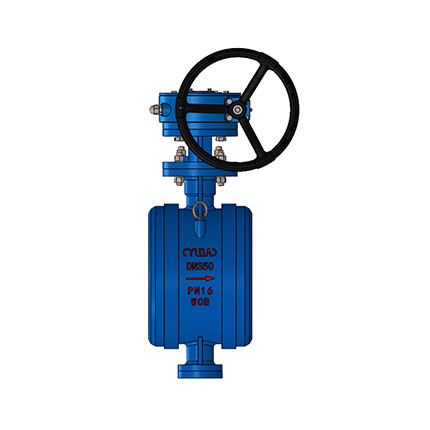

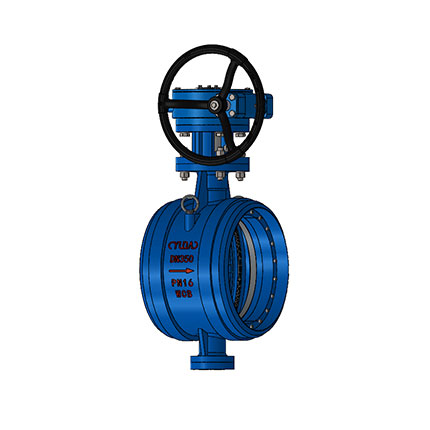

Triple Eccentric Butt-weld Metal to Metal Butterfly Valve

Design: BS EN593 or API609
Flange: GOST 12821
Face to Face: EN558-1 Series 14;
Materials: Body: WCB/LCB/LC1/CF8/09Г2C/20Л/25Л
Briefs
Standards
Optional
Briefs
Triple eccentric design;
Bidirectional type zero leakage
size rage from DN 200—DN 2000mm
Pressure rating: PN10 – PN25 from DN 600-DN 2000mm PN 40 for DN 200-DN 1200mm
Applications: water, hot water, oil and gas etc.
Working temperature: -59+ 425
Standards
Design:
BS EN593 or API609
Flange:
GOST 12821
Face to Face:
EN558-1 Series 14;
Materials:
Body: WCB/LCB/LC1/CF8/09Г2C/20Л/25Л
Disc: WCB/CF8/CF8M/09Г2C/20Л/25Л
Stem: SS420/SS304/SS316/17-4Ph/ Duplex SS
Sealing Materials:304/316/Graphite/ metal to metal
Optional
Electric actuator / pneumatic actuator/ bare shaft / gearbox +ready flange
SEND MESSAGE
Related Products
DN600-2000 Bidirectional flange triple offset butterfly valve

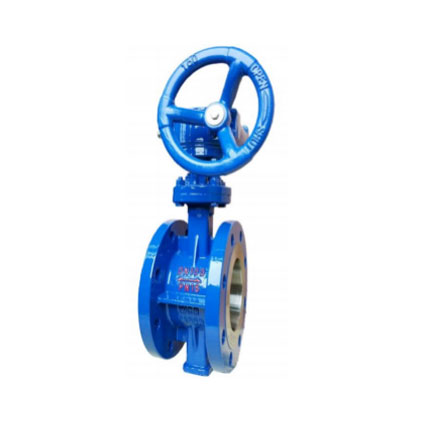

DN200-500 Bidirectional flange triple offset butterfly valve
